JOWUA

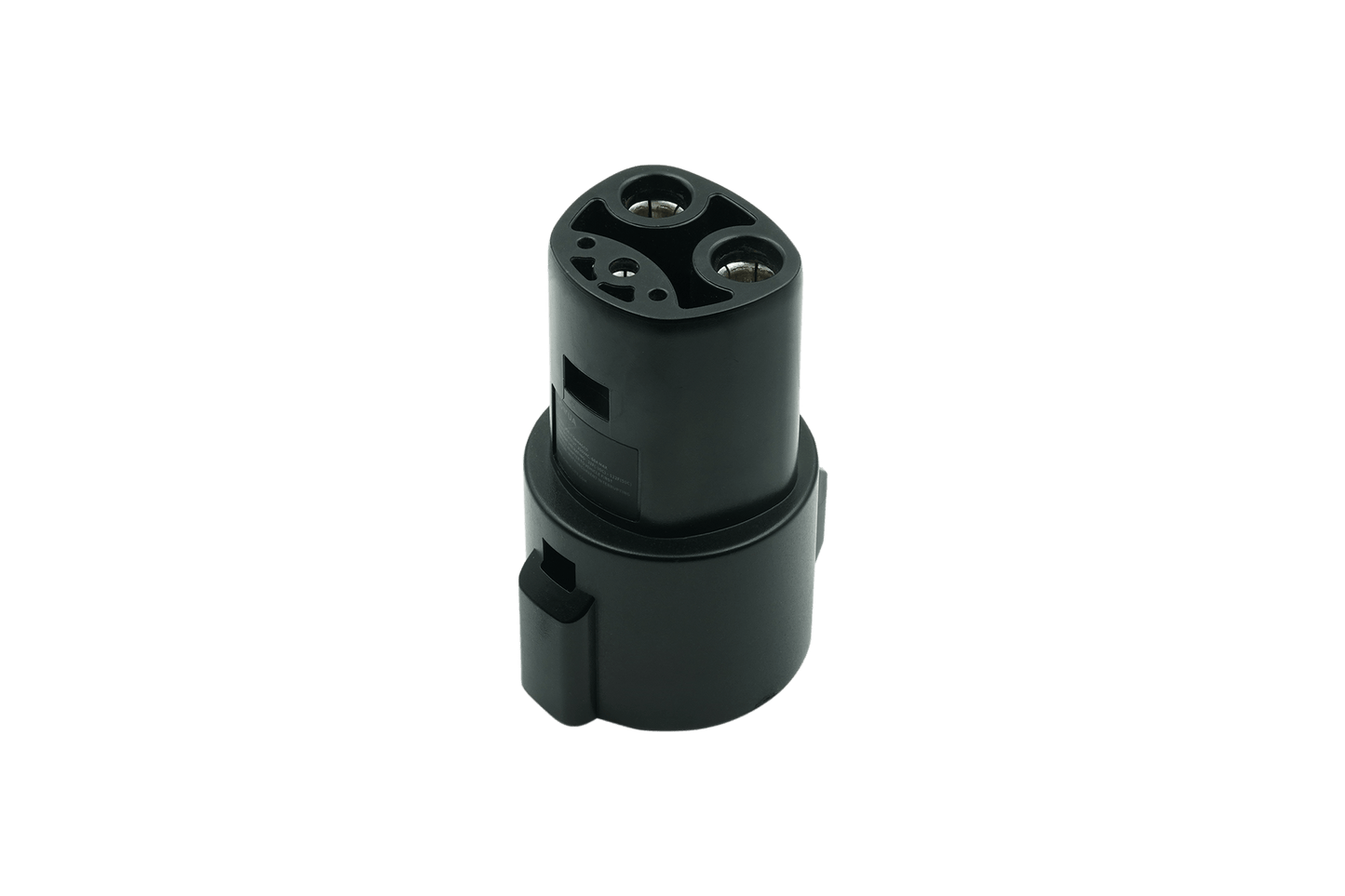

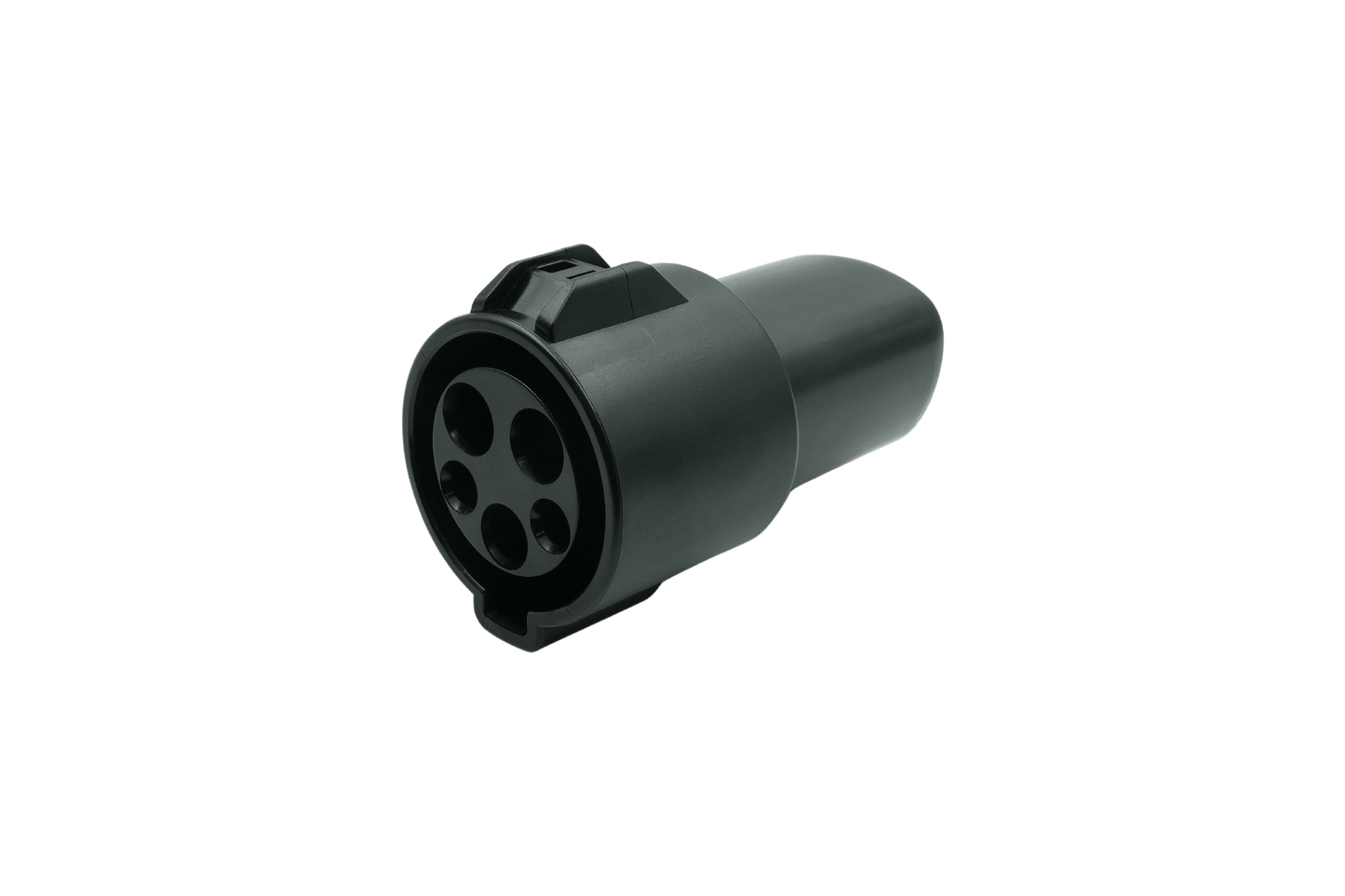

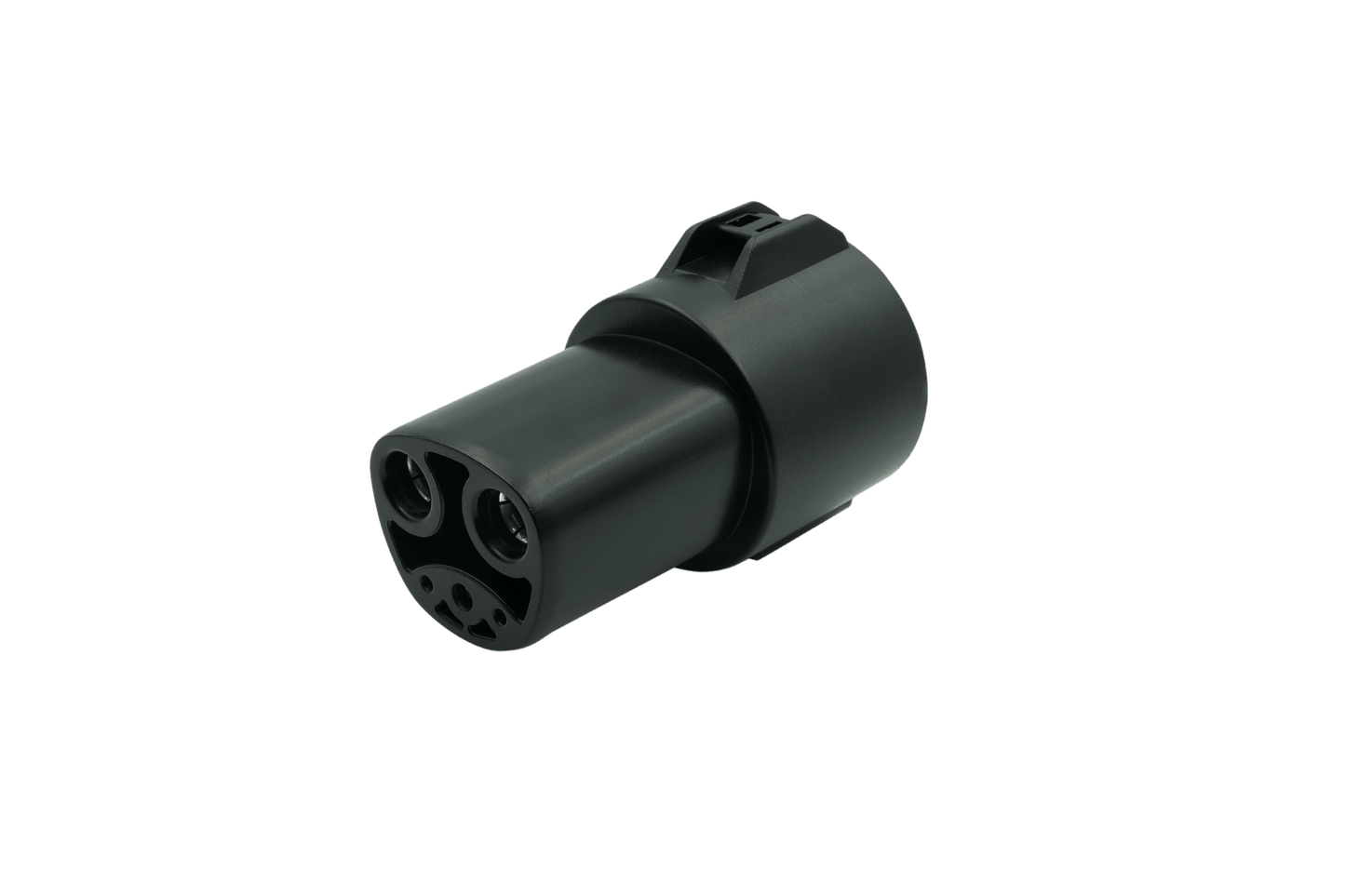

J1772 to TPC(NACS) Adapter

J1772 to TPC(NACS) Adapter

Regular price $50.95 USD
Regular price Sale price $50.95 USD
Sale Sold out

Description

Connector Durability
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N

Electrical Performance
Rated Operating Current: 60A (MAX)
Operating Voltage : 250V (MAX) AC

Excellent protection performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)

Spec

Rated Current 60A (MAX)
Rated Voltage 250V (MAX) AC
Insertion Force SAE < 80N; TPC < 100N
Connector Durability No-load plug/unplug > 10,000 cycles
Flame Retardant Grade UL94 V-0
Protection Grade IP54
Terminal Temperature Rise 50K
Ambient Temperature -30°C to + 50°C
Charging Standards Compatibility SAE J1772:2010
