NACS Mobile Connector Solution for Tesla
NACS Mobile Connector Solution for Tesla
Description
A Must-Have for NACS Owners Charge your Tesla effortlessly on the go with our Travel Charging Dock. Compatible with various outlets, it offers mid to slow charging speeds, perfect for home use or travel. Keep your car charged anywhere, anytime without relying on fixed charging stations.
Dual-Purpose Design
- Daily Home Use: Includes NEMA 14-50 adapter.
- Portable Travel: Includes NEMA 5-15 adapter; compatible with Tesla’s NEMA 6-20 adapter.
40A/9.6kW Exceptional Charging Performance Equipped with UL-certified high-grade cables, our charger supports up to 40A current, 25% higher than the standard 32A, enhancing charging efficiency and maintaining safety by reducing heat build-up.
Cost-Saving Scheduled Charging With built-in Wi-Fi, schedule charging during off-peak hours for lower rates. Adjust power settings and monitor temperature conveniently.
Premium Nickel and Silver-Plated Terminals Corrosion-resistant and durable, ensuring stable conductivity and preventing shorts in humid environments like Taiwan.
UL94 V-0 Flame Retardant Top-tier flame resistance; self-extinguishes immediately.
IP55 Dust and Water Resistance Fully sealed for dust and water protection, ideal for rainy weather.
Support OCPP1.6J JOWUA mobile connector supports the Open Charge Point Protocol (OCPP) version 1.6 in JSON (JavaScript Object Notation), which is an open standard protocol for communication between electric vehicle charging stations and central management systems.

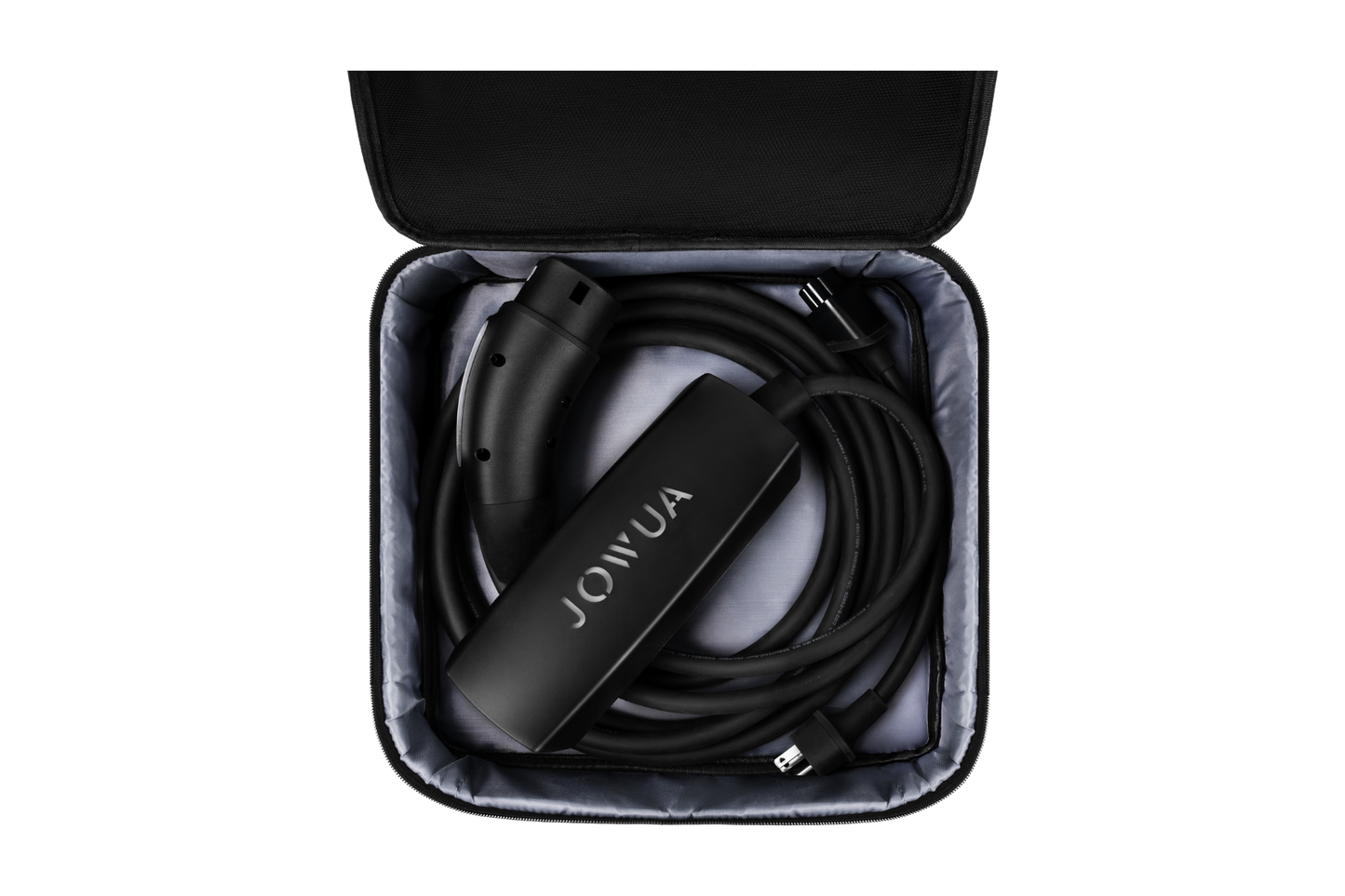

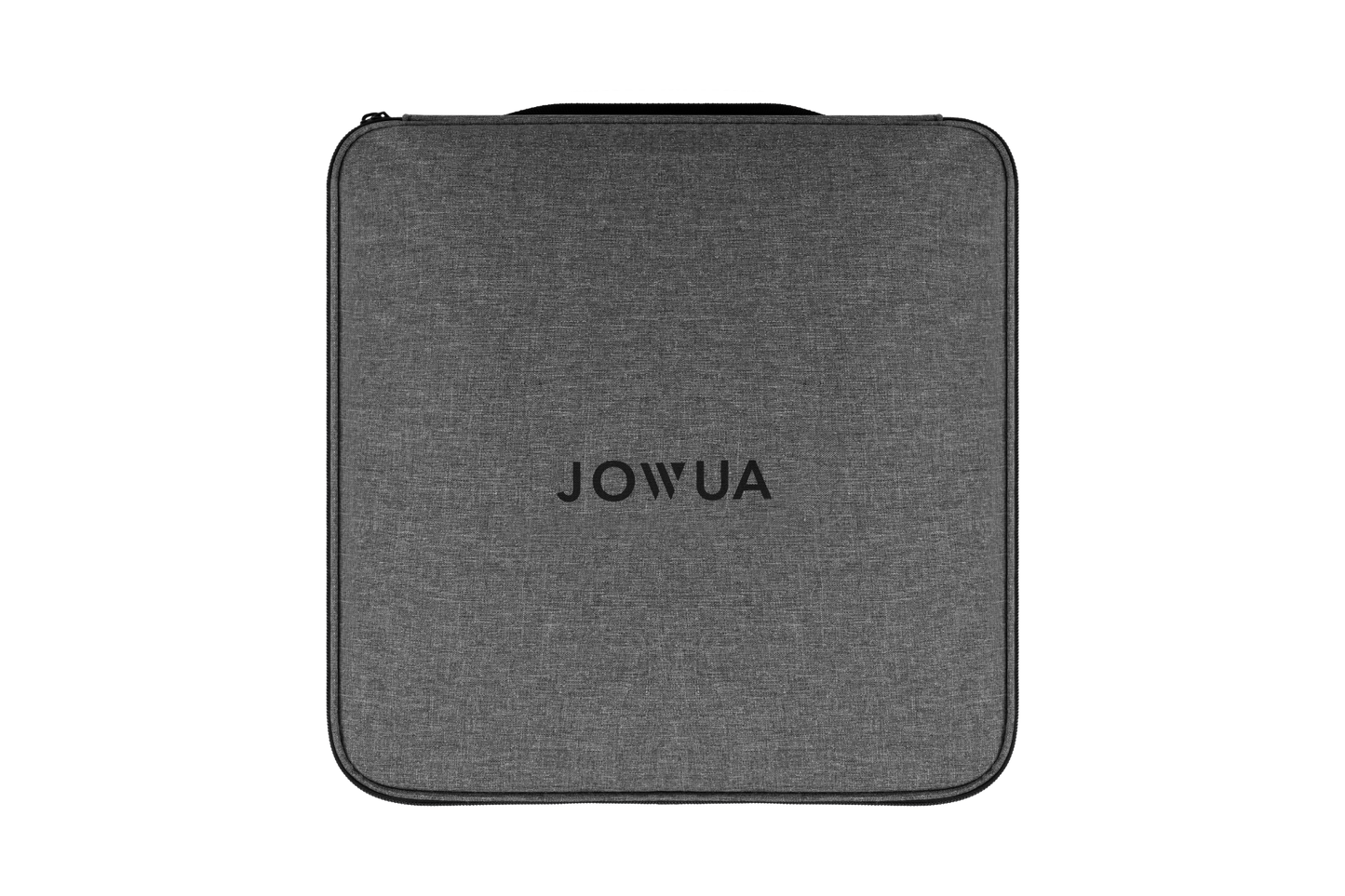

Branded Carrying Case Includes a carrying case for easy transport and protection.
FAQ/Supports
Specification
Rated Current | 40A (MAX) |
Rated Voltage |
100-240V AC |
Plug/Unplug Force |
F < 80N |
Durability |
No-load plug/unplug > 10,000 cycles |
Flammability |
UL94 V-0 |
Protection Level |
IP55 |
Terminal Temperature Rise |
50K |
Operating Temperature |
-30°C to +50°C |
Type |
North American Charging System (NACS) |
Weight |
2.6KG |
Device Dimensions |
Height: 233mm/Width: 89mm/Depth: 61mm |
Cable Length |
5.5 meters (when adapter is installed) |

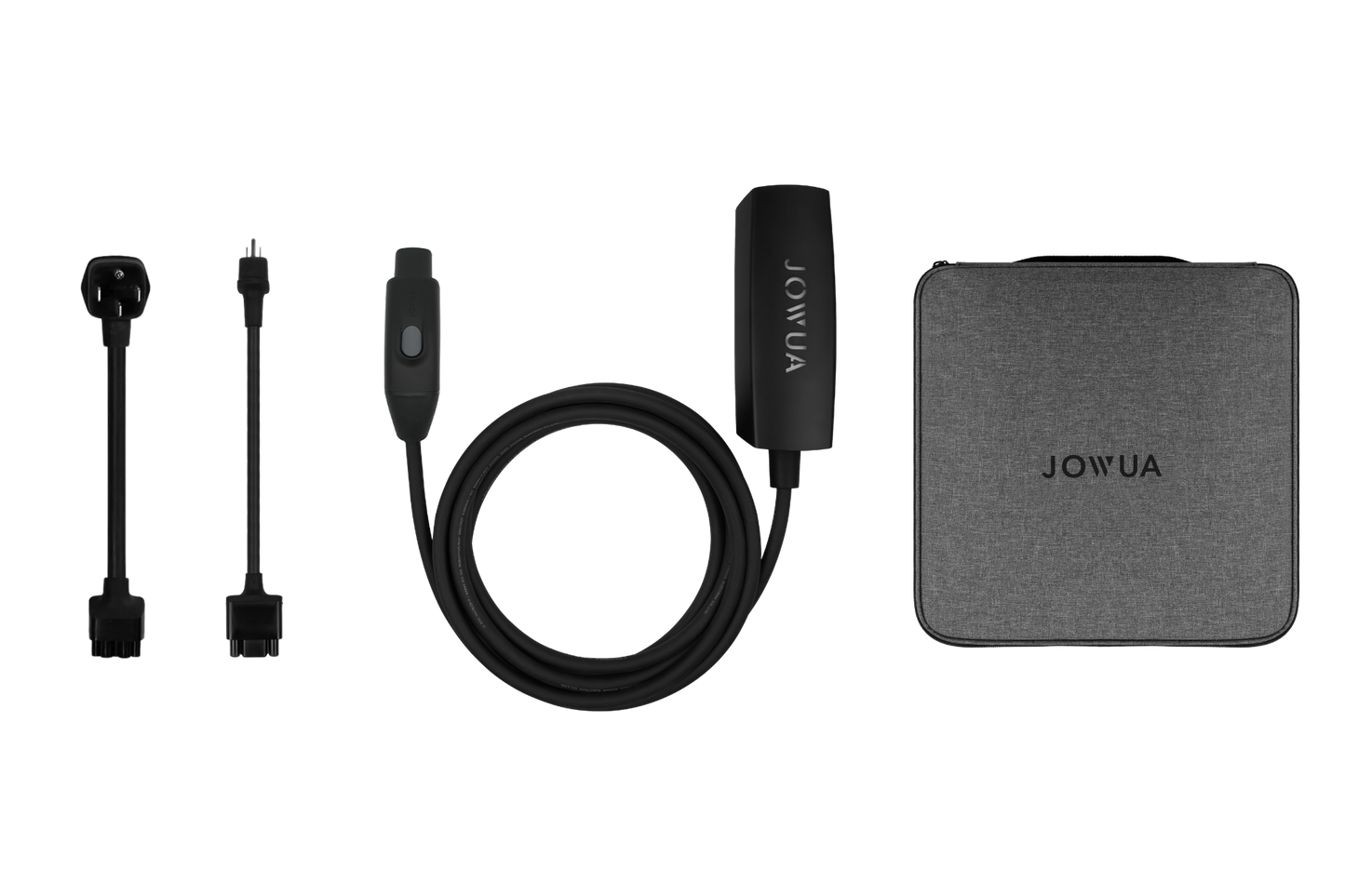

Package Content Included
- x1 NACS Mobile Connector
- x1 NEMA 14-50 adapter
- x1 NEMA 5-15 adapter
- x1 Storage Pouch
