JOWUA

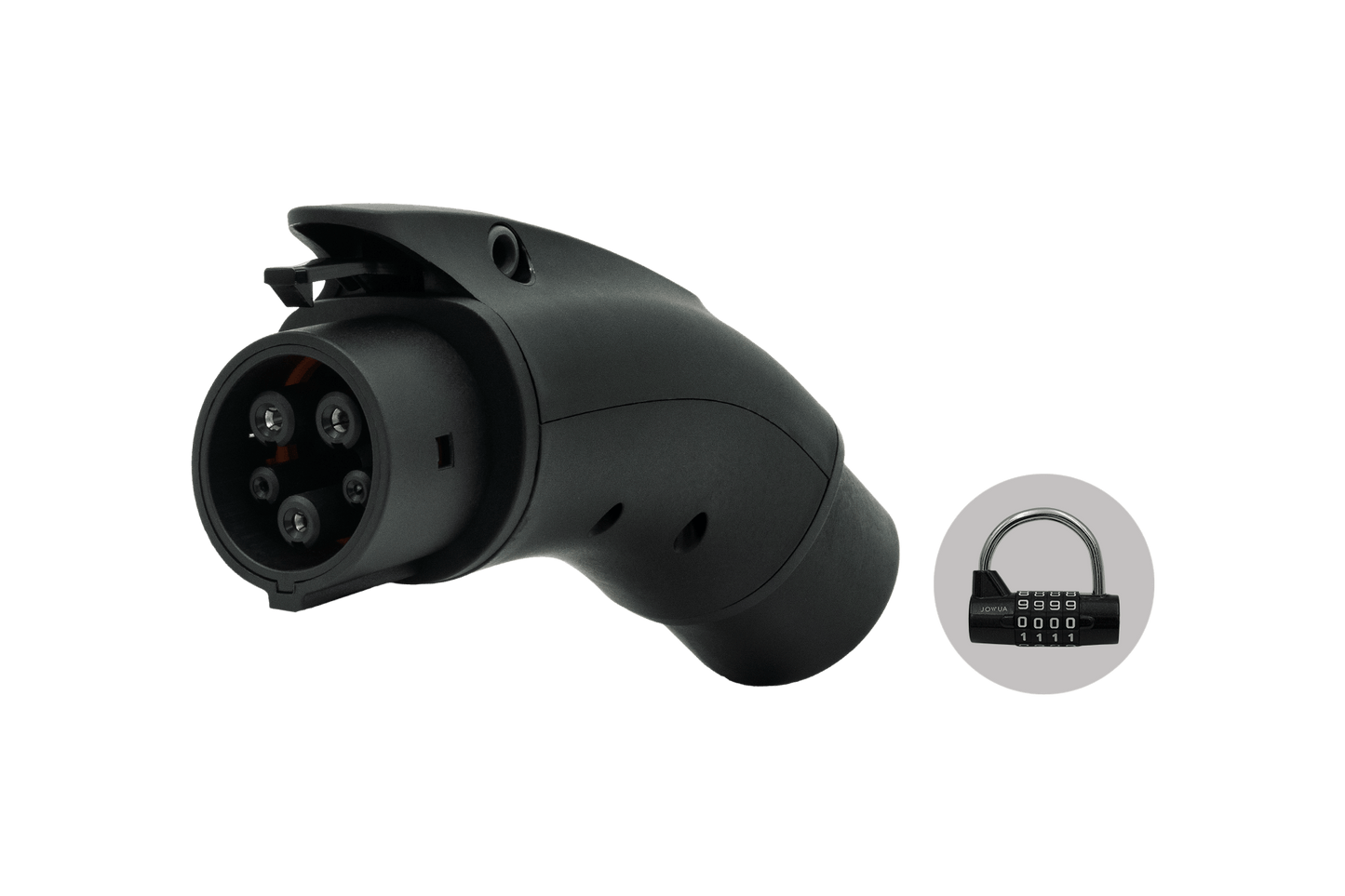

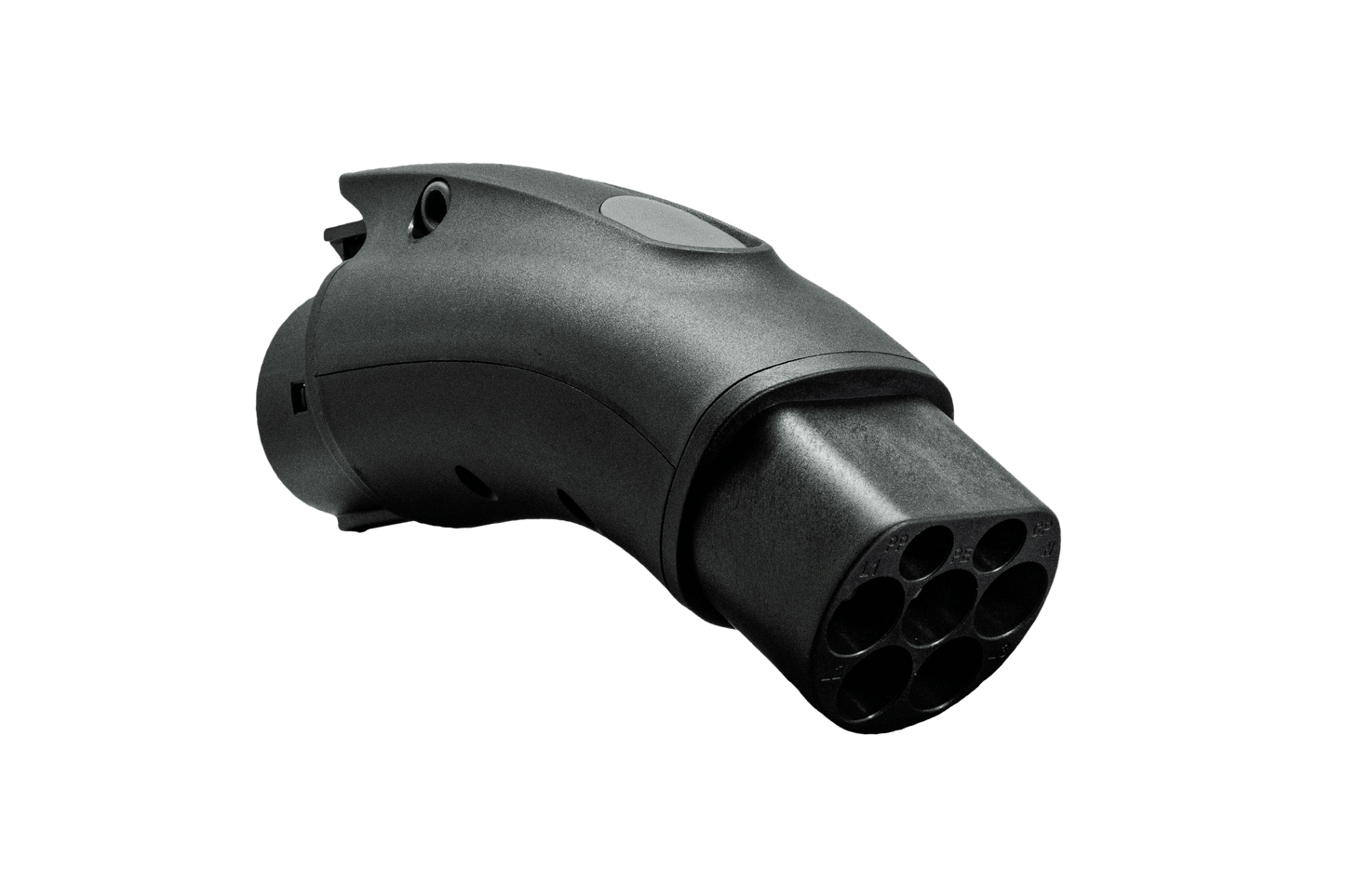

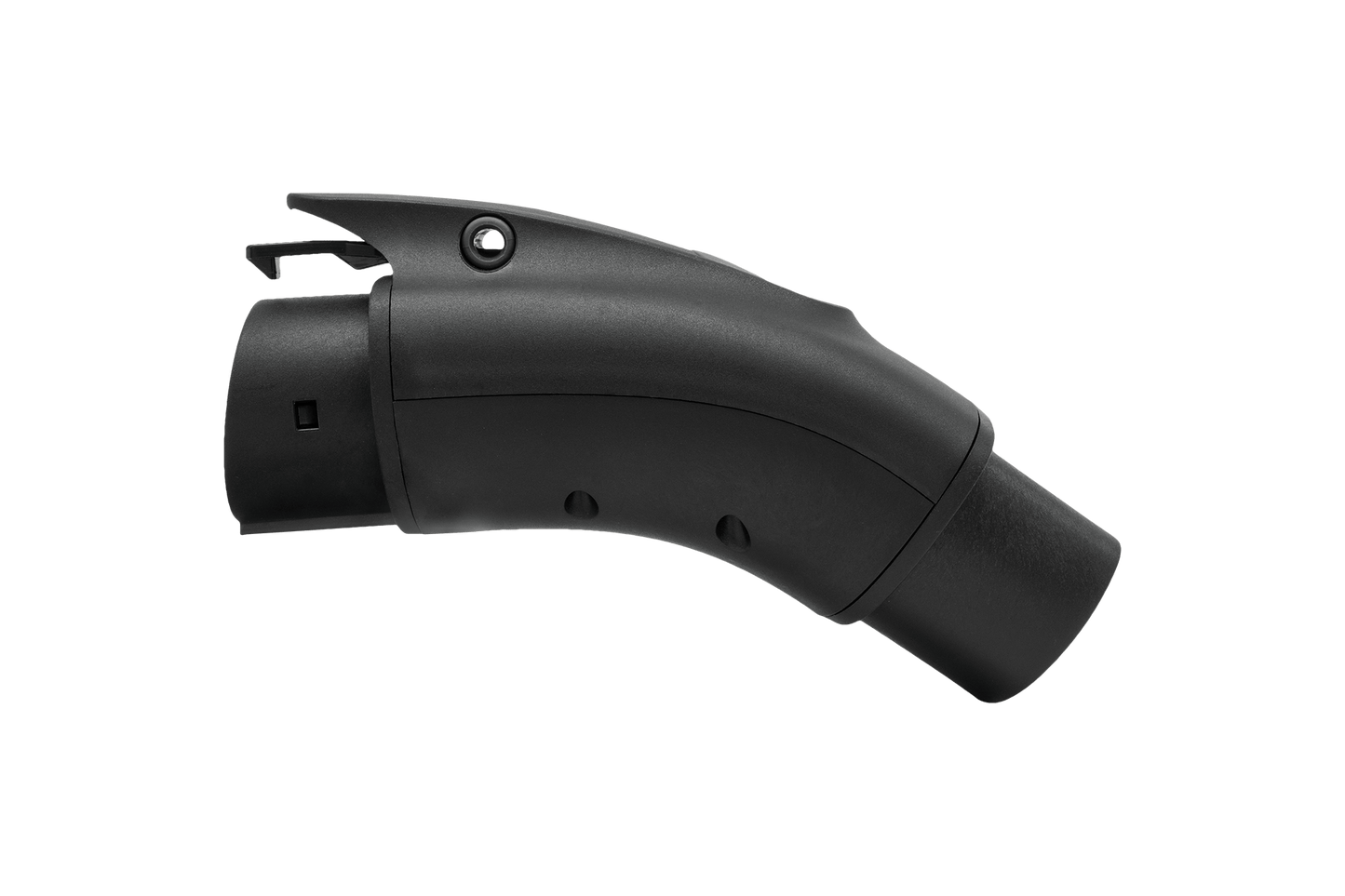

CCS2-AC (TYPE2) to J1772 Adapter

CCS2-AC (TYPE2) to J1772 Adapter

Regular price $150.95 USD
Regular price Sale price $150.95 USD
Sale Sold out
Only compatible with AC Charging. Not compatible with DC Fast Charging.
Sold with Jowua's lock.

Description

Patented Chip Design
Built-in Jowua exclusive design communication chip.

Best Defense from Unplugs
Car end lock: Prevents the adapter from being pulled away from the car.
*Note: Since some models do not have a car-end locking mechanism, the car-end lock can be used depending on the vehicle's condition. (One free padlock is included.)

Connector Durability
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N.

Electrical Performance
Rated Operating Current: 32A (MAX)
Operating Voltage: 250V (MAX) AC

International Dustproof and Waterproof Ratings
Completely sealed, dustproof and waterproof, don't worry about rainy days.

Excellent Protection Performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)

Spec

Rated Current 32A (MAX)
Rated Voltage 250V (MAX) AC
Insertion Force F < 80N
Connector Durability No-load plug/unplug > 10,000 cycles
Flame Retardant Grade UL94 V-0
Protection Grade IP56
Terminal Temperature Rise 50K
Ambient Temperature -30°C to + 50°C
Charging Standards Compatibility

SAE J1772:2010

IEC 62196-2


View full details
